Batching & Sampling

Batching

Batching refers to grouping edges, nodes, or graphs into a temporal graph provided as input to the model.

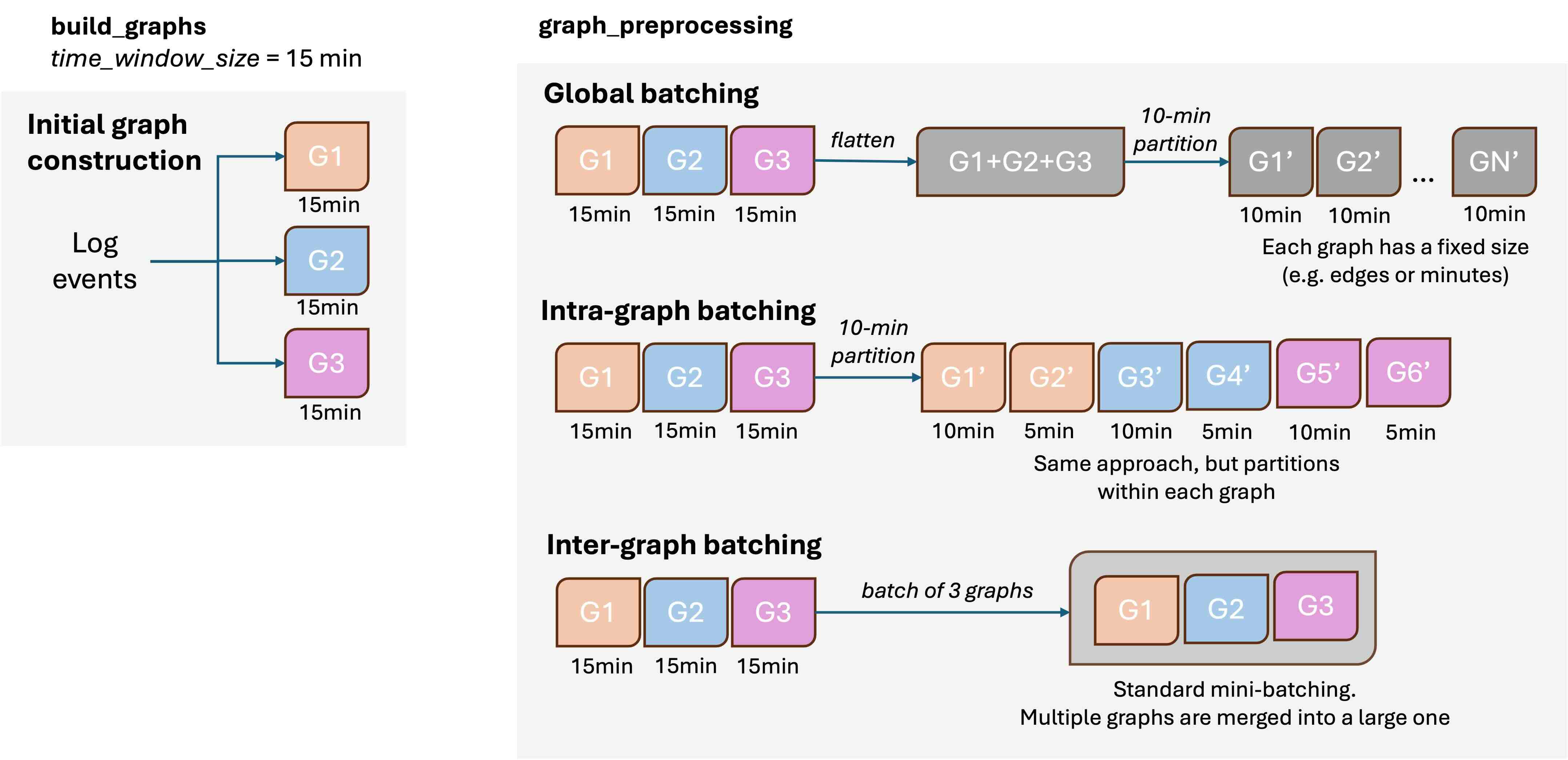

We provide three batching strategies that can be configured via dedicated batching arguments.

Global Batching: takes as input a large flattened graph comprising all events in the dataset and partitions it into equal-size graphs based on number of edges, minutes, or similar.

Intra-graph Batching: applies similar batching as global batching but within each built graph.

Inter-graph Batching: groups multiple graphs into a single batch. This batch is a large graph where all graphs are stacked together without any overlap, following the mini-batching strategy from PyG.

Batching

Note

All three batching strategies apply sequentially and can be used together.

Choosing the Right Batch Size

The batch size plays a key role in determining the trade-off between memory usage, speed, and learning effectiveness. Selecting an appropriate batch size requires careful consideration of the graph’s scale, the temporal dynamics, and the available hardware resources.

Large Batches

  • ✅ Enhance training speed through better GPU parallelization
  • ✅ Capture events over longer time periods
  • ❌ Increase GPU memory usage
  • ❌ May cause high node in-degree, leading to over-squashing (loss of neighbor information)

Small Batches

  • ✅ Reduce GPU memory consumption
  • ✅ Enable fine-grained neighborhood aggregation
  • ❌ Extend training time
  • ❌ Risk missing graph patterns spanning longer time ranges if temporal features are not captured

TGN Last Neighbor Sampling

In the Temporal Graph Network (TGN) architecture, the objective is to predict edges within a graph batch at time \(t\) based on the last neighbors of each node seen in batches happening prior to \(t\). Setting tgn_last_neighbor to the argument detection.graph_preprocessing.intra_graph_batching.used_methods enables to pre-compute the TGN graph for each preprocessed graph in the dataset. Specifically, it does not replace the graph directly but adds tgn_* attributes to it, which can be used by the downstream encoder.

To use the TGN architecture, you should also add tgn to detection.gnn_training.encoder.used_methods as it enables to properly handle TGN attributes. The TGNEncoder accepts as argument an encoder, defined in the config, which will be applied to the pre-computed TGN graph.

Examples of TGN config can be found in kairos.yml and orthrus.yml.

Neighbor Sampling

Info

Not implemented yet.
